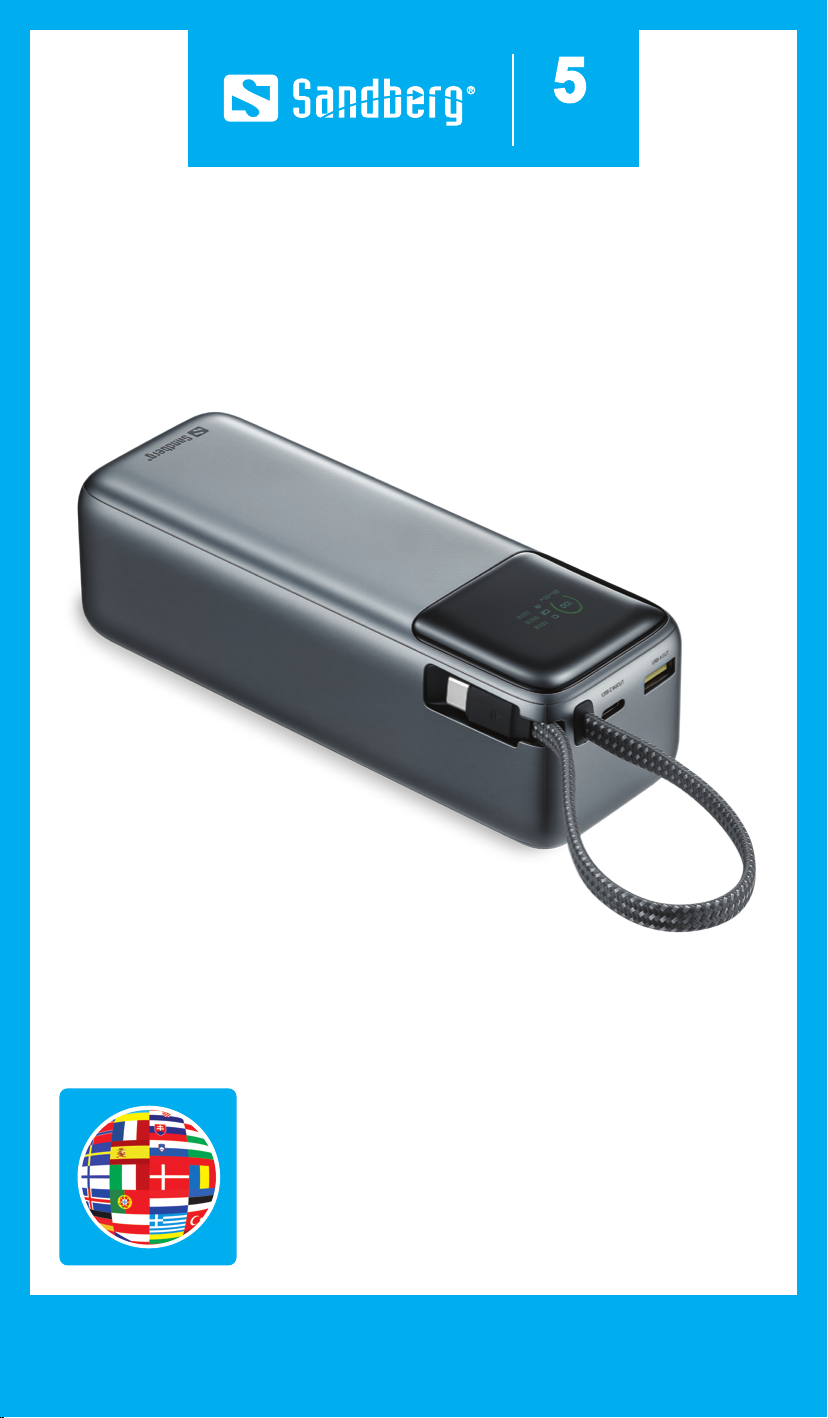

All-in1 Powerbank 27000 PD 240W
Years
Warranty
www.sandberg.fr
Quick Guide
421-31
USB-C
USB-C
or
Quick guide
2
Product overview
Charge Powerbank
USB-C input/output
USB-A output
USB-C cable
Display
Power button
USB-C
Display
Remaining capacity in %
Fast charging InputOutput
Remaining capacity in time / Remaining time in charging
Present power on USB-C
Present power
on USB-C cable
Present power on USB-A
Temperature Battery cycle
Total input Total output
USB-C
USB-C
Prioritized charging
Quick guide
3
Charge devices
Example of use
Check the capacity of the battery
Low Current Mode
Flashing
1x ON 2x OFF
3 sec
2h < 60mA
or
2x
Always On
Off
4
Warranty
Helpdesk
There is a five-year warranty on your Sandberg product.
Please read the warranty terms and register your new Sandberg product at https://www.sandberg.world/warranty
For information on handling electronic waste, see https://www.sandberg.world/weee
https://helpdesk.sandberg.fr
Years
Warranty
Made in ChinaItem no. 421-31
Sandberg A/S
Bregneroedvej 133D,
3460 Birkeroed, Denmark
www.sandberg.fr
Capacity: 27000 [email protected] = 97.2Wh
Input (USB-C cable): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A (140W Max)
Input (USB-C port): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W Max)
Output (USB-C cable): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A (140W Max)
Output (USB-C port): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W Max)
Output (USB-A port): 5V/3A, 9V/2A, 10V/2.25A, (SCP) 12V/1.5A (22.5W Max)
Combined Output (Max):
USB-C cable + USB-C port: 140W + 100W = 240W
USB-C cable + USB-A port: 140W + 22.5W = 162.5W
USB-C cable + (USB-C port + USB-A): 140W + 15W = 155W
USB-A + USB-C port: Balanced load 5V/3A = 15W
Product weight: 615g
[email protected]
NOTE: If not used regularly, please recharge the powerbank at least every 3 months to maintain optimal performance.
All-in1 Powerbank 27000 PD 240W
